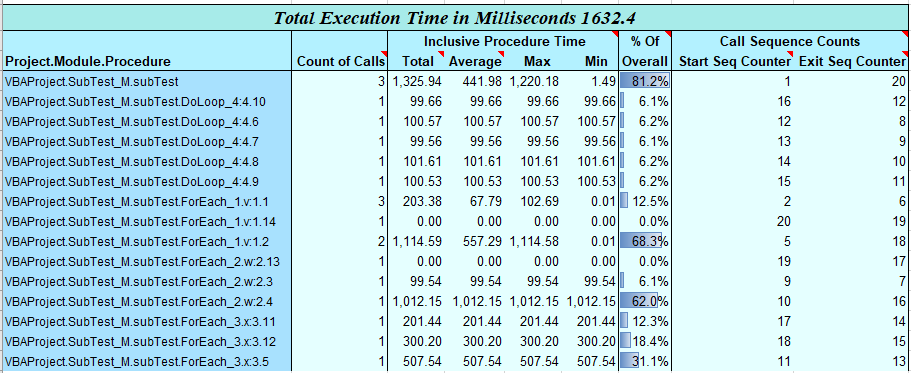

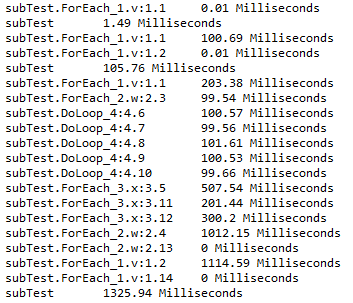

Every Iteration of Loops Immediate Output

The Loop iterations are labelled slightly different for the 3 different types of loops (For To, For Each and Do).

The general format is

procedureName.loopType_UID1.variableName:depth.UID2

Where

loopType is one of the following, For To, For Each, or Do Loop

UID1 is a loop unique identifier that can be seen in the user code.  This is to support in finding the loop which this timer measured,

variableName is the loop variable for the For To and For Each loops.  The Do loop does not have a loop variable,

depth is the nested depth value.  Subroutine and functions will be counted as a depth down,

UID2 is a unique identifier that is generated at runtime.  This is required to identify the path a For Each or a Do loop is taking.  For the For Each and Do loops, the UID2 is based on a counter that labels the loops sequentially when that loop is first called.  For the For To loop, the UID2 is the value of the increment variable.
