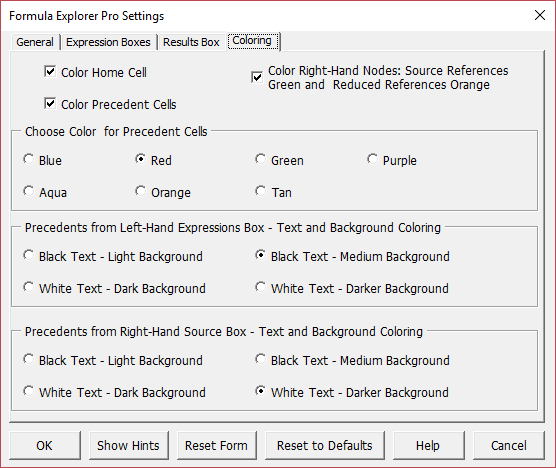

Coloring Settings
.png)
Color Home Cell
The Home cell will be colored.
Color Right-Hand Nodes: Source References Green and Reduced References Orange
When checked the text in the right-hand Source/Result box is colored:
Restricted References resulting from Intersections are colored Orange
Source References resulting from Functions and expressions are colored Green
All other text is colored black.
Color Precedent Cells
By default this button is ON.
Choose Color for Precedent Cells
Choose the color to be used when coloring precedent cells. The default color is Red.
Shift-Click on the Color button on the Explorer Pro form will cycle through the colors.
Alt-Click on the Color button on the Explorer Pro form will cycle through the Text and Background coloring options.
.png)
Left-Hand Cell References- Text and Background Coloring
Choose black text with light or medium colored background, or white text with dark or darker colored background. This choice will be applied to the references from the left-hand expression box.
Right-Hand Cell Reference - Text and Background Coloring
Choose black text with light or medium colored background, or white text with dark or darker colored background. This choice will be applied to the references in the right-hand Source/Result box.

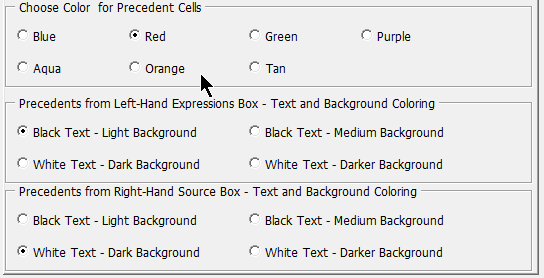

The image below shows the colors and shading for light background, medium background, dark and darker backgrounds.
.png)
|
